Web Console

Features:

• Add/modify users and user groups
• Modify device access permissions
• Browse device connection logs and the other logs
• Update settings
• Manage client settings sync strategies

Log in

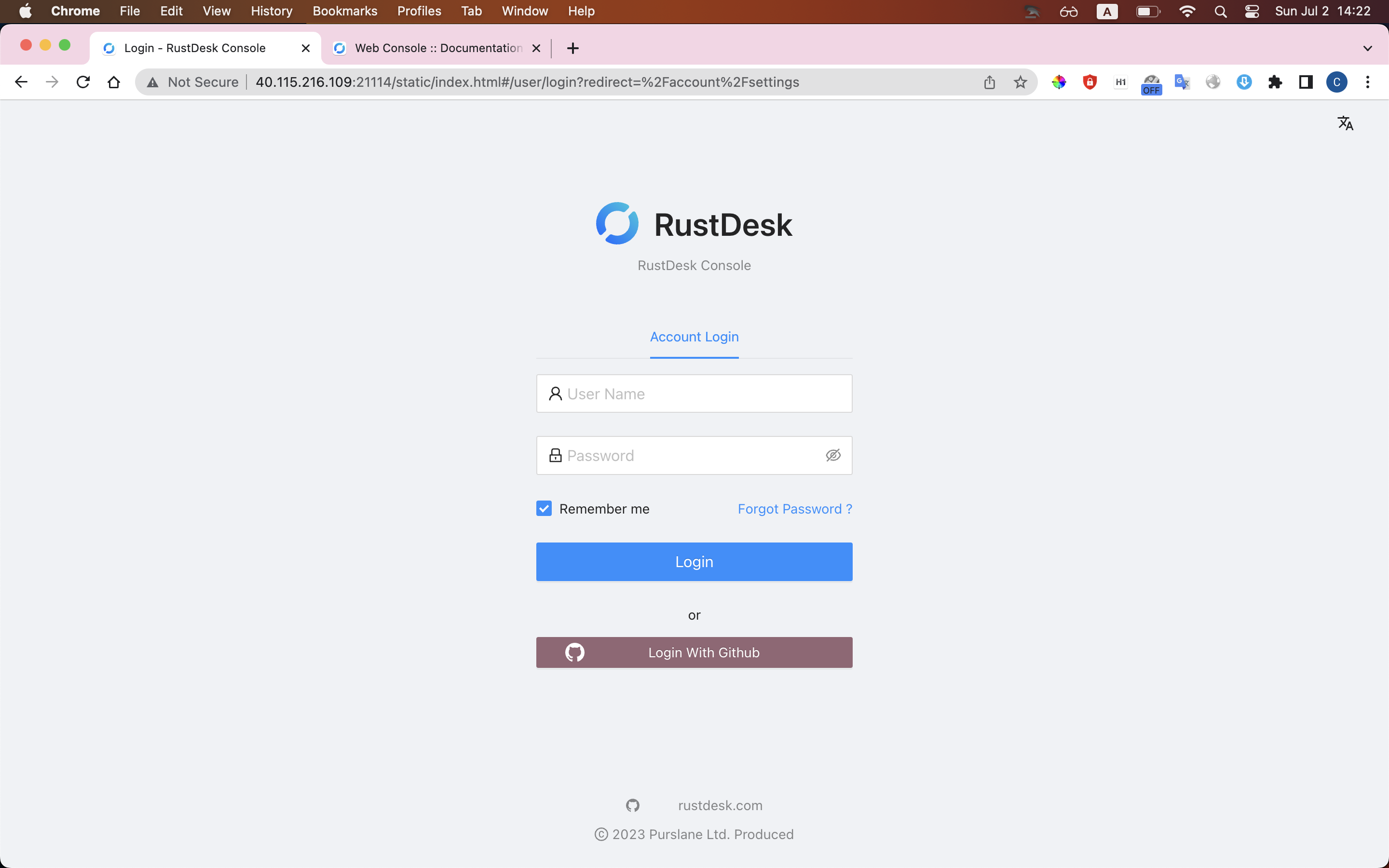

As mentioned earlier, the default port of the web console is 21114. Enter http://<hbbs host>:21114 in the browser to enter the console page, as shown in the following figure (hbbs runs on the ip 192.168.1.143 server):

If you need https support, please install a web server such as Nginx.

The default administrator username/password is admin/test1234, please be sure to change the password after logging in, select “Settings” in the account menu in the upper right corner to enter the password modification page, as shown in the following figure. You can also create another admininistator account and delete this one. You’d better enable email login verification.

Non-administartor users can also login to browser their device and logs, change their user settings.

Windows EXE

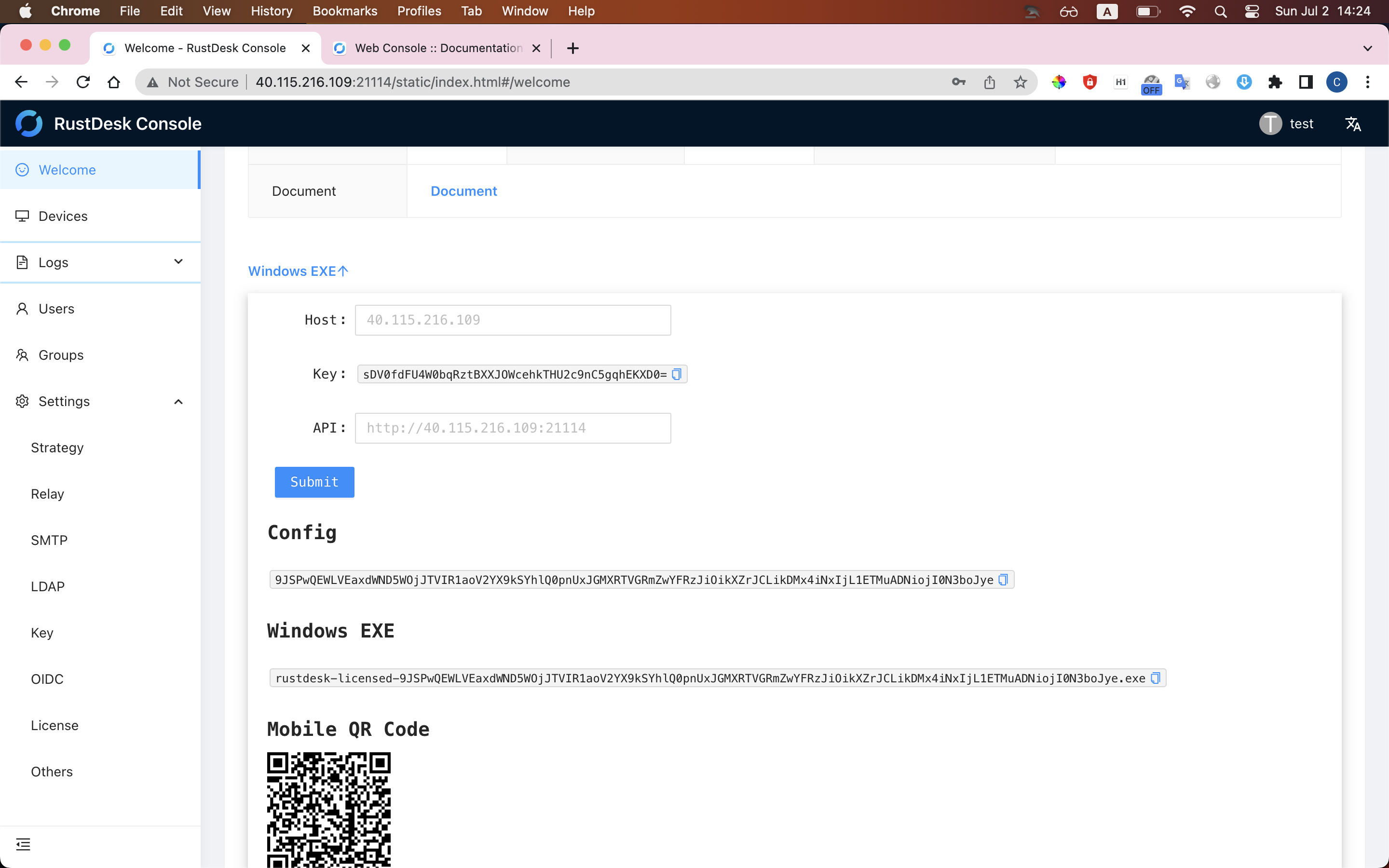

For Windows clients, you can leave out the custom server configuration and put the configuration information in the RustDesk.exe filename instead. As shown above, please go to the console welcome page and click on Windows EXE. Client >=1.1.9 Required。

Device access permissions

There are two ways to associate a device with a user:

• Via console device page
• Log in to the specified user account on the client side

The following two situations will prevent the device from being accessed:

• Make device disabled in console devices page
• Make user disable in console user page

The associated device can only be accessed by user devices of the same user or user group, or in correct cross-group settings.
